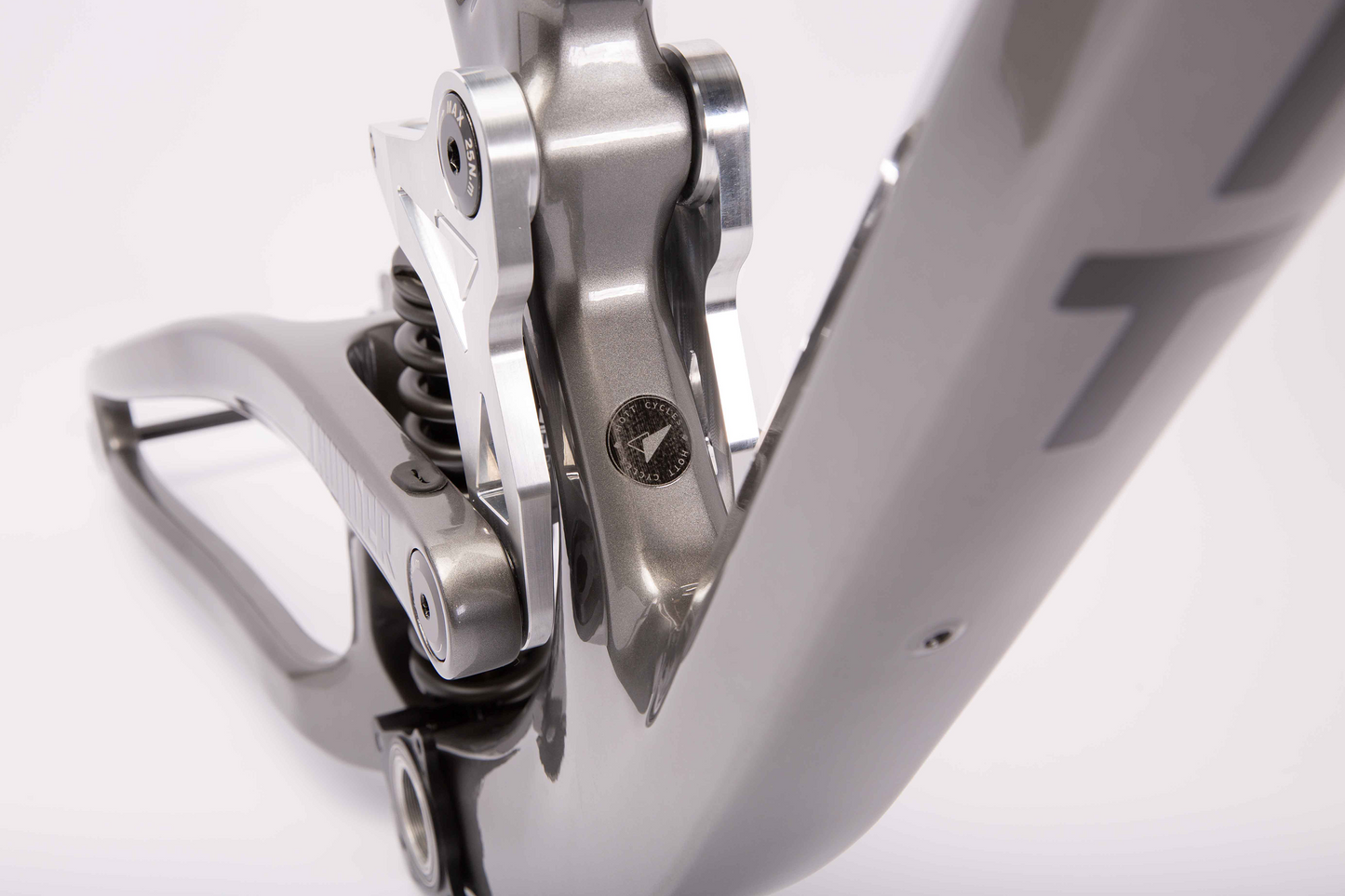

Frameset Thunder

27,5" Vollcarbon Downhillbike

Advanced Plus certification

Category : ASTM5

Tested and certified by the renowned Zedler testing institute.

 Test number 22-131654FR

https://testseals.zedler.de/de/

General data:

Sizes: Medium / Large

Travel: Rear 208mm

Damper: 240 x 76 mm

Headset bearing: conical 1.5"

Installation length fork: 585 mm

Offset: 46 mm

Max tire width: 27.5 x 2.5

Rear thru axle: 12 x 150 mm

Max chainring: 1x 34T

Bottom Bracket: BSA 83mm

Brake standard: IS adapter up to 203mm

Technical specifications - MEDIUM

Wheelbase: 1213mm

Bottom bracket height: 359 mm

Steering head angle: 63°

Steering head length: 105 mm

Reach: 408 mm

Stack: 587 mm

Technical Specifications - LARGE

Wheelbase: 1240mm

Bottom bracket height: 359 mm

Steering head angle: 62.5°

Steering head length: 110 mm

Reach: 433 mm

Stack: 595 mm

Delivery time:

When ordering, the delivery time is currently 3-8 weeks, an exact delivery date can be requested from us before ordering.

Guarantee: 24 months

Set includes: frame, headset 1.5" to 1.1/8", Rock Shox Vivid shock including installation bushings. assembly of the components.

When ordering additional components, assembly of these is included free of charge.
