ONE OF A KIND
Our ATTACK Frame is the dirt bike for enthusiasts and specialists. We balanced the attack. So that it is reliable for dirt jumps, lightning fast on the pump track and stable enough for street use.
Your frame - your style
You can design the frame according to your wishes and make adjustments after consultation with us. A true all-rounder and above all a genuine Austrian
Dirt / Street / Pumptrack Fun
All parts on the frame are subjected to enormous loads, so stable components are recommended as a priority. A suspension fork with Dirtjump approval like the Rock Shox Pike DJ and parts from Hope and TITLE deserve our recommendation.
This is about weight and performance. A Rock Shox Reba with a thru-axle offers sufficient reserves and saves a lot of weight. Equipped with a carbon crank from e*thirteen and hubs from Hope, all refined with components from TITLE. Then you are at world class level.
A weight of 10.58 kg ready to drive is realizable.
CHOOSE A FRAME COLOR TO SUIT YOUR STYLE

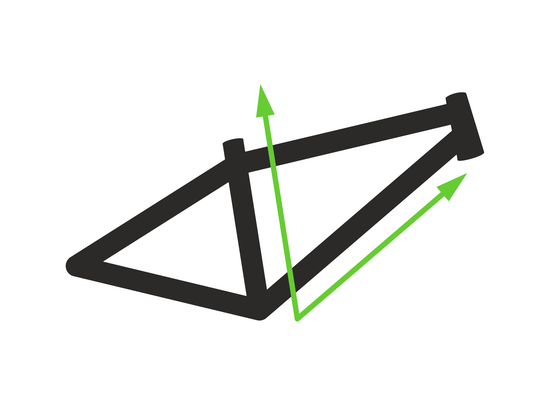

ADJUSTMENTS TO THE GEOMETRY - NO PROBLEM
WE COMPLETE YOUR BIKE WITH COMPONENTS OF YOUR CHOICE
Sizes: One size / special geometries
control bearing: tapered 1.5" - 1 1/8"
Installation length fork: 582 mm
Max. tire width: 26 x 2,3
Axle mounts rear: 135 x M10 Bolt In
bottom bracket: BSA 83 mm
Brake standard: 180 mm
Wheelbase: 1006,12 - 1031,12 mm
Bottom bracket drop: 20 mm
Steering head angle: 68,55°
Seat post angle: 72,35°
Reach: 417 mm
Stack: 575 mm
chainstay length: 370,5 - 395,5 mm
Weight: 2470 g
